The best way to learn more about DBGizmo is to download a free demo now! |
The DBGizmo features are organized under 17 tabs. The tab names are Home, Tables, Routines, SQL², SQL³, Notes, Facts, About, and Grid1 through Grid 9. |
The Home tab provides database connection features, an object name search feature, a SQL code search feature, SQL routine scripting features, and an interactive database diagram to visualize table relationships. |
The Tables tab provides a convenient way to browse table structures and parent/child relationships between tables. It also offers several snippets of generated SQL code to work with the selected table. |
The Routines tab provides an informative way to review dependencies between SQL routines and other objects. It shows a Referenced By (SQL routines) list and References To (objects) lists for the selected SQL routine. |
The SQL² tab provides generated SQL code for a variety of purposes. There are options for creating foreign key indexes, creating CRUD stored procedures, creating tables/triggers for auditing purposes, and more. |
The SQL³ tab provides generated SQL code to reconcile rows in two databases with identical structures. There are options to process all rows in selected tables or a set of related rows in related tables. |
The Notes tab provides an editor for the Notes (extended properties) of various database objects. It offers a handy means to embed useful documentation into the database for future reference. |
The Facts tab provides a viewer for the Facts (database properties) of all databases on the connected server. It's a simple way to compare and confirm the current configuration settings. |
The About tab provides contact information, usage notes, and some program configuration options. |
The Grid tabs display information about database structures. There are 48 different kinds of information about your tables, columns, SQL routines, constraints, indexes, search results, table relationships, and object dependencies. |
These features offer tremendous advantages for SQL Server database developers and administrators. |
|
|

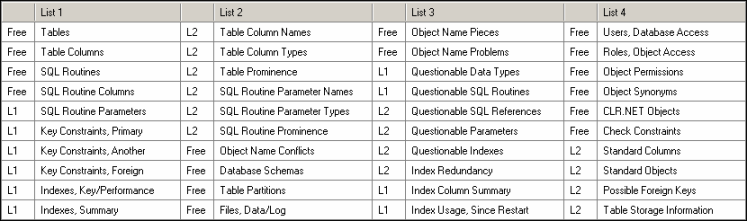

The Home tab contains a group of tabs, Lists - 1 / 2 / 3 / 4, in the lower left corner. |
These tabs contain query options (there are 10 of them on each tab) for database analysis. |
The query options present data sets which offer interesting ways to examine schema information. |
The data sets are listed below. Please refer to the DBGizmo documentation for descriptions and details. |
|
|
|
